PCB Manufacturing – From Prototype to Volume Production
Precision fabrication for FR4, HDI, Multilayer, Aluminum, Heavy Copper, and Rogers PCBs.
- 15+ Years Experience
- 100,000㎡ Monthly Capacity
- ISO 9001 & UL Certified
- 2,000+ Clients Served
Overview
Shenzhen Birmin Technology Co., Ltd. offers comprehensive PCB manufacturing services, covering everything from PCB layout and fabrication to testing, enabling you to streamline your production process and minimize expenses.
With over 15 years of experience, we specialize in producing high-quality PCBs for LED lighting, automotive electronics, communication equipment, industrial controls, and medical devices.
Our manufacturing operations are supported by well-established facilities with a monthly capacity of 100,000 square meters, ensuring efficient production processes and consistent quality for every order.
PCB Table
| Parameter | Capability |
|---|---|
| Layer Counts | 2 – 32 layers |
| Board Materials | FR4, High TG FR4, Halogen-Free, CEM-3, Rogers |
| Min. Line Width/Space | 3mil / 3mil |
| Min. Mechanical Drill | 0.15mm |
| Finished Board Thickness | 0.2mm – 6.0mm |
| Copper Thickness | 0.5oz – 5oz |
| Surface Finishing | HASL, Lead Free HASL, ENIG, OSP, Immersion Tin, Immersion Silver |
| Solder Mask Color | Green, Blue, Red, Black, White, Yellow, Matte |
| Silkscreen Color | White, Yellow, Black |
| Wrap and Twist | ≤0.7% |
| Flammability | 94V-0 |
| Special Technologies | Gold Finger, Peelable Mask, Blind/Buried Vias, Impedance Control, Rigid-Flex |
PCB Production Equipment
Advanced equipment empowering every stage of PCB manufacturing, from drilling and lamination to plating and inspection.
Han's CNC Drilling Machine
Automatic PCB Cutting Machine
Automatic Legend Printing Machine
Hole Inspection Machine
Electroless Copper Plating Line
Etching Production Line
Pattern Plating Line
VCP Copper Plating Line
Automatic Exposure Machine
Automatic Lamination Machine
High-Temperature Tunnel Oven
Legend Inkjet Printer
2-Wire & 4-Wire Low Resistance Tester
2D Vision Measurement System
3D Digital Microscope
AOI Repair Station
AVI Inspection System
Automatic Electrical Tester
Flying Probe Tester
Manual Electrical Tester
Product

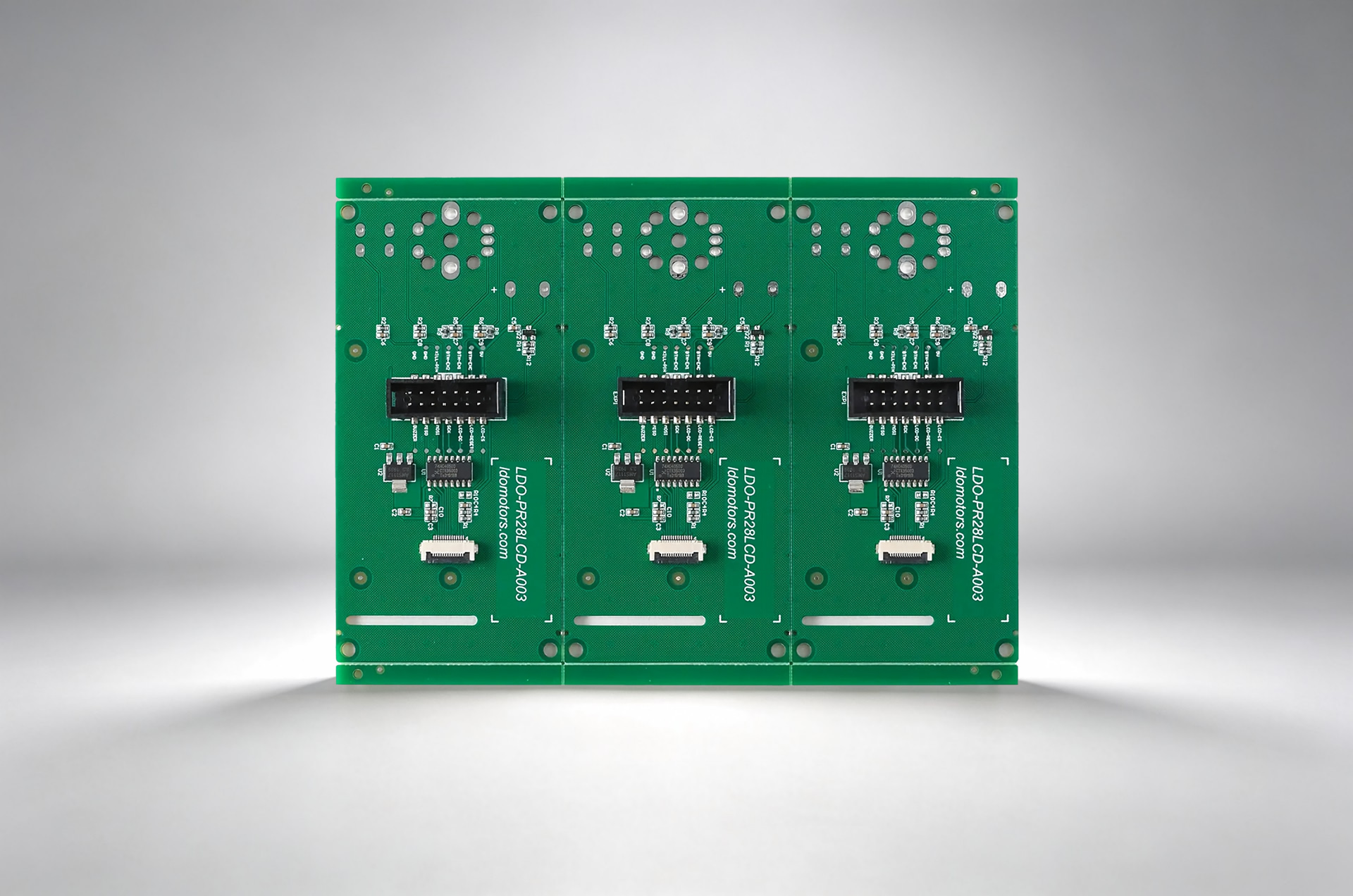

FR4 PCB
Standard fiberglass-reinforced epoxy boards – the most widely used PCB type for general applications.
Learn more

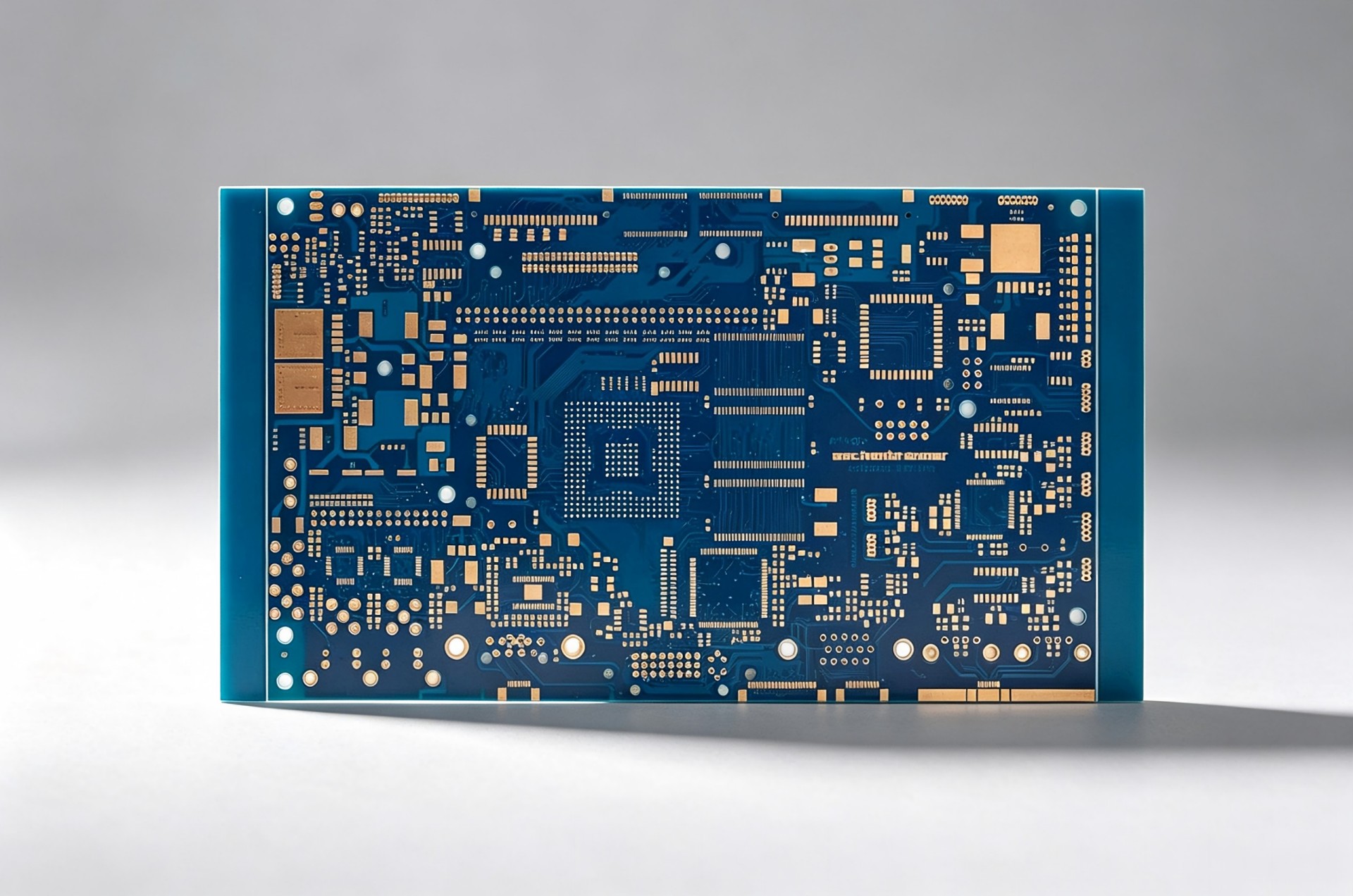

HDI PCB
High-density interconnect boards with micro vias, blind and buried vias for compact designs.
Learn more

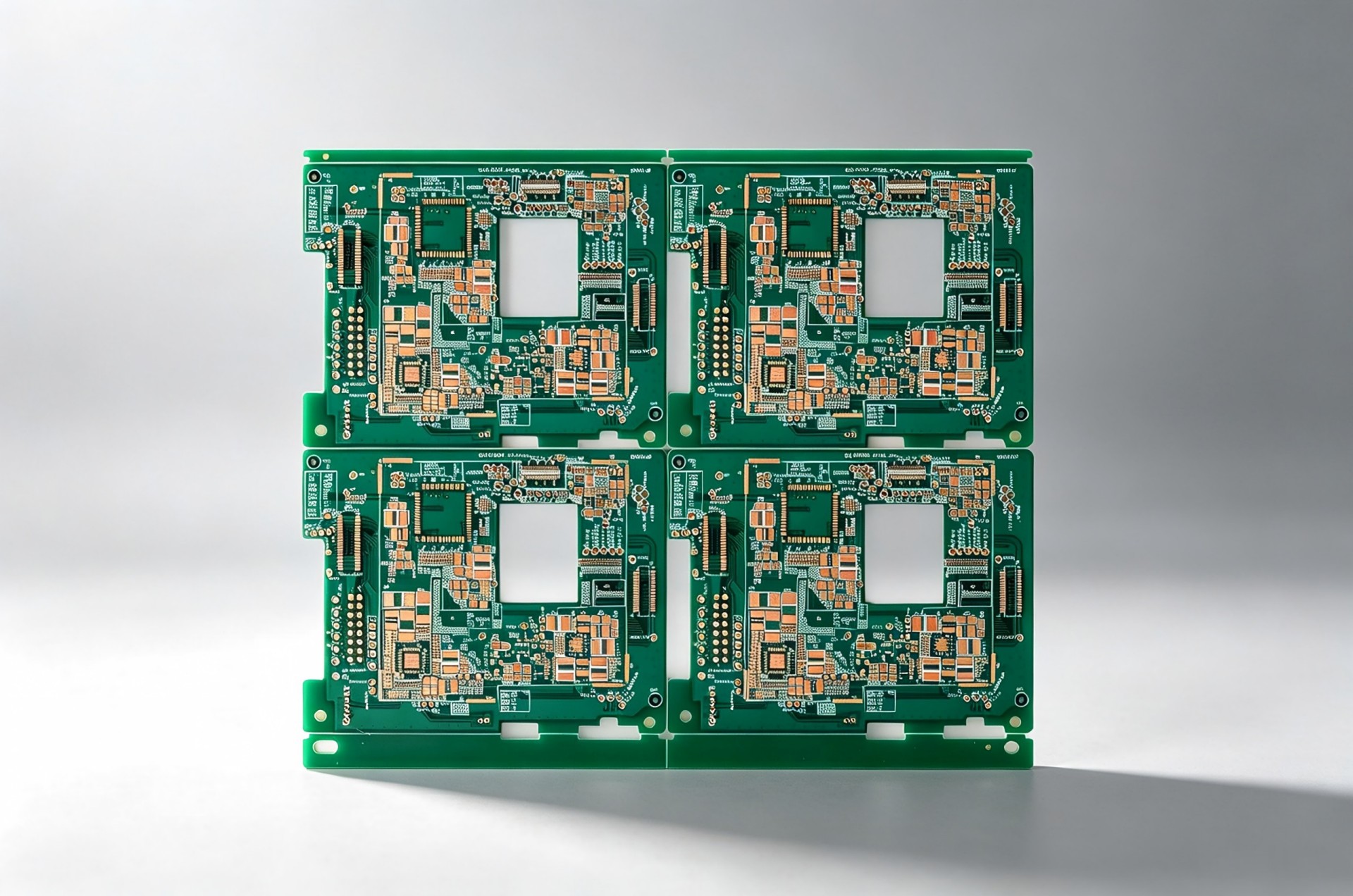

Multilayer PCB
4 to 32 layers for complex circuitry and high-performance applications.
Learn more

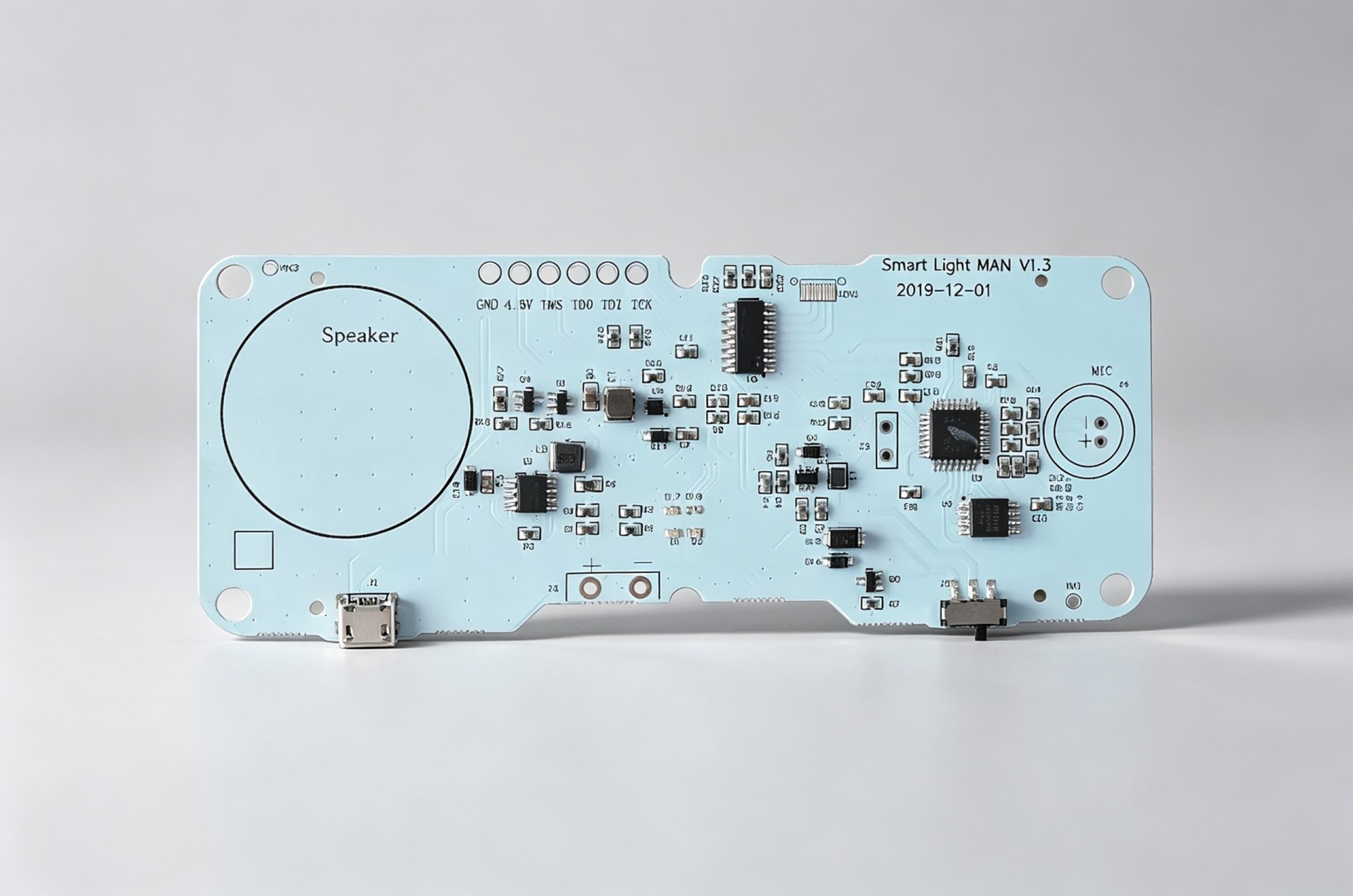

Aluminum PCB
Metal-core boards with excellent heat dissipation for LED and power applications.
Learn more

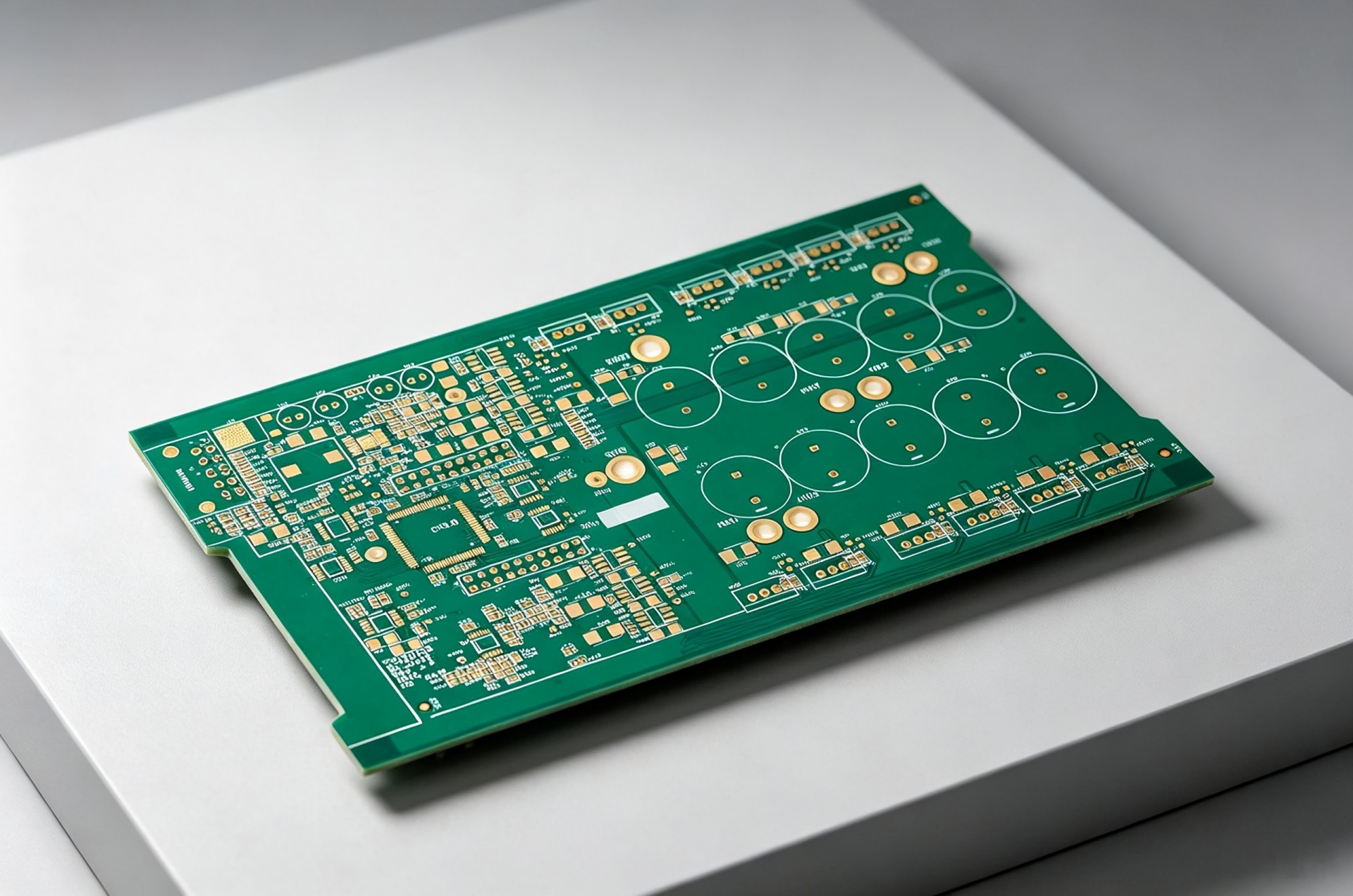

Heavy Copper PCB
3oz to 10oz copper for high-current carrying applications.
Learn more

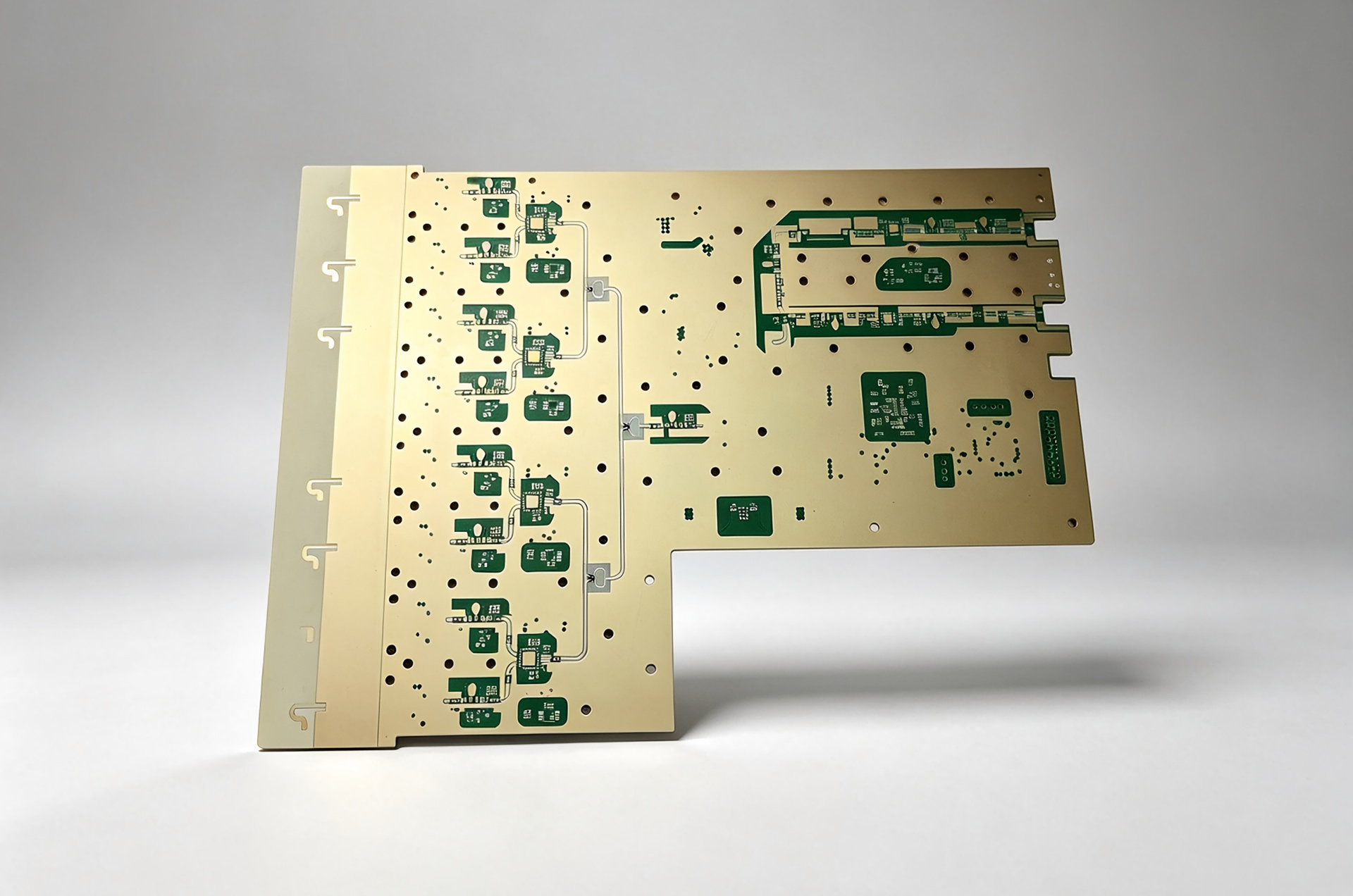

Rogers PCB
High-frequency laminates for RF, microwave, and 5G applications.
Learn more

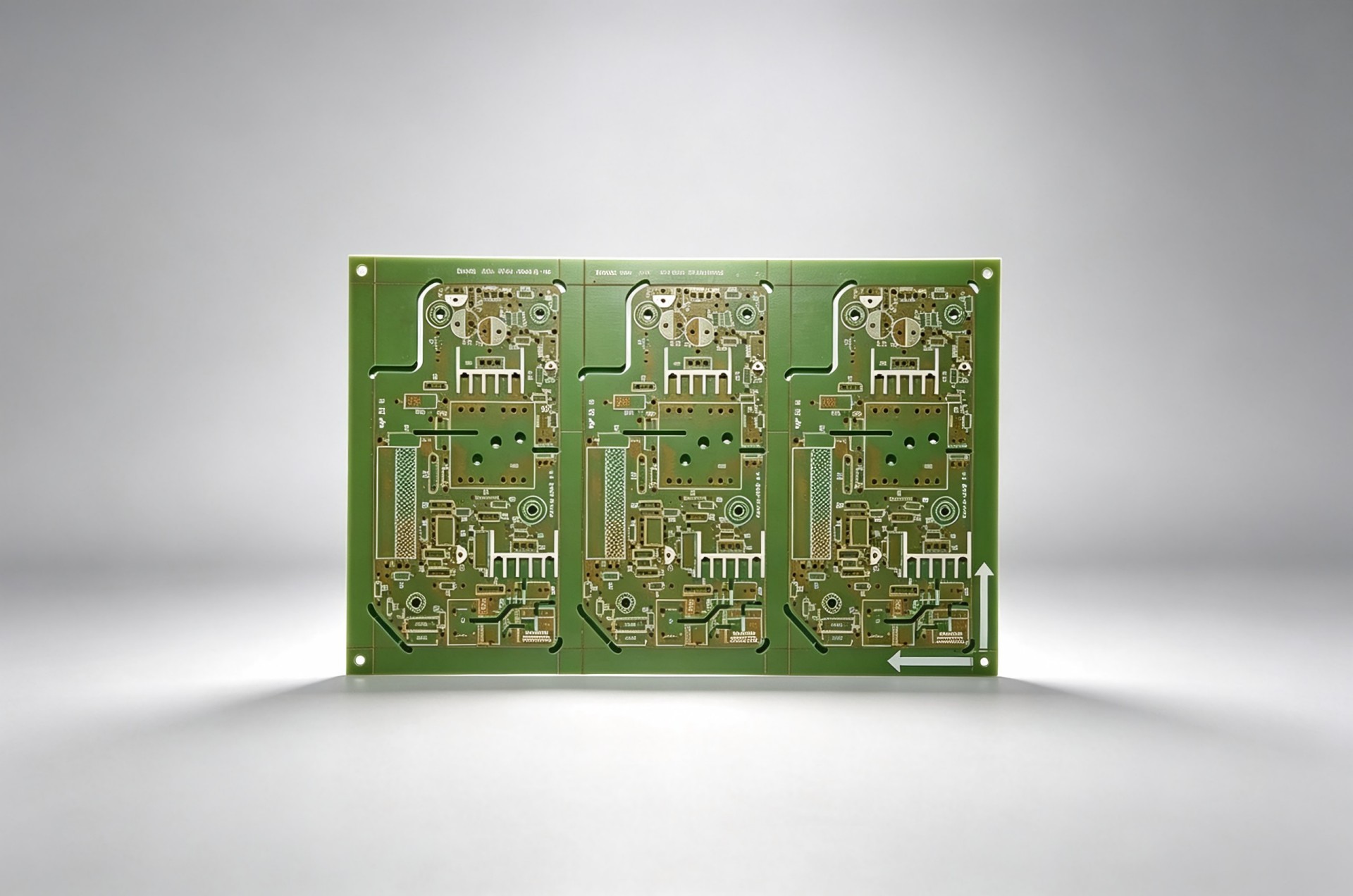

Quick Turn PCB
Fast-turnaround prototyping service – 3-5 days delivery.
Learn more
